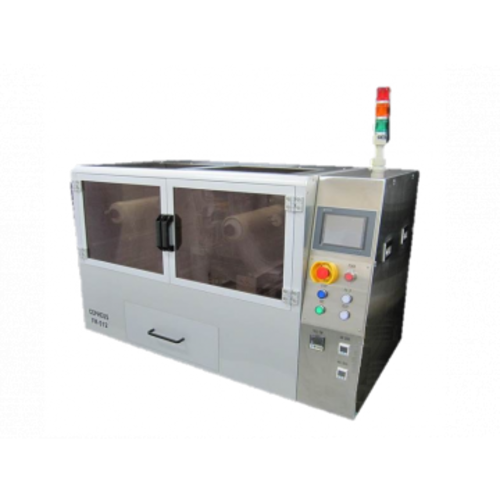

Semi-auto Mounter
| Model： | Semi-auto Mounter |
|---|---|
| Desc： | |
| Char： |
Friendly operation，Perfectly lamination. Tape mounted pressure is adjustable. Table with heating system to promote mounting quality. |
| Gas pressure | MAX. 0.4～0.6 Mpa（4~6 ㎏/cm2） |
|---|---|
| Gas consumption | MAX. 100NL/MIN. |
| Electrical utility | 110VAC 50/60HZ |
| Power consumption | 2KVA |
| Power | 5KVA |
| Dimensions（W×L×H） | W1320 × L730× H770 mm |
| Weights | about 300Kg |
