Manual Mounter






Model: Manual Mounter

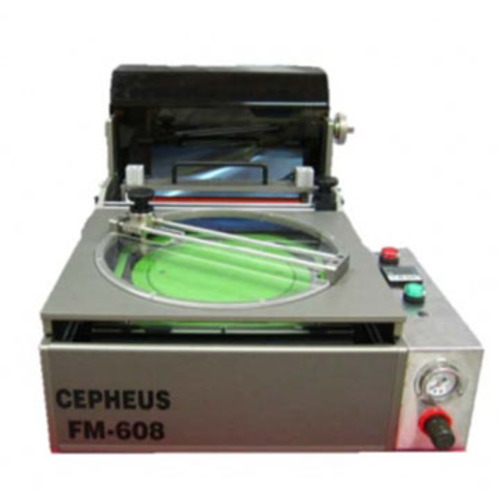

Desc: FM series manual wafer mounting system provide easy operated and repeatable wafer-to-frame tape mounting results, with its reliable structure, flexible design, standard features and options to control optimal tape, tensioning and bubble-free-mounting, accurately mount all standard wafers, optical glass and other materials.
Char:

-chucks available for all standard wafer/film frame size.

-Builts-in vacuum generator.

-Chuck table temperature control.

-ESD eliminator. (option)

-Non contact mounting. (option)



Model FM-612 FM-608 FM-606
Wafer/frame size 12"&8" 8"&6" 6"
Power 450W 450W 450W
Dimension 59x88x39(cm) 50x79x39(cm) 45x74x39(cm)
Weights 53kg 38kg 33kg
Electrical Utility AC 110V/220V 50/60 HZ AC 110V/220V 50/60 HZ AC 110V/220V 50/60 HZ
Gas CDA Max. 5 bar CDA Max. 5 bar CDA Max. 5 bar
